Manual Clutch System locate between Flywheel (Engine)
and Transmission/
transaxle, basically consist of Clutch Disk, Clutch
Cover, Release Bearing.
The main function is as follows.
1) Torque Multiplication
2) Speed Multiplication
3) Power transmission and stoppage
4) Selection of forward or backward
5) Smooth Start
During gear shifting, release bearing push Diaphragm
Spring Finger due to release
fork movement. That is, release bearing push diaphragm
spring finger as moving
toward engine side, pressure plate is moved engine
opposite by the reason of
a lever principle. As a result clutch is disengaged
and power is cut off.
Except during gear shifting, power is transmitted
to transmission due to contact
of Pressure Plate and Clutch Disk.

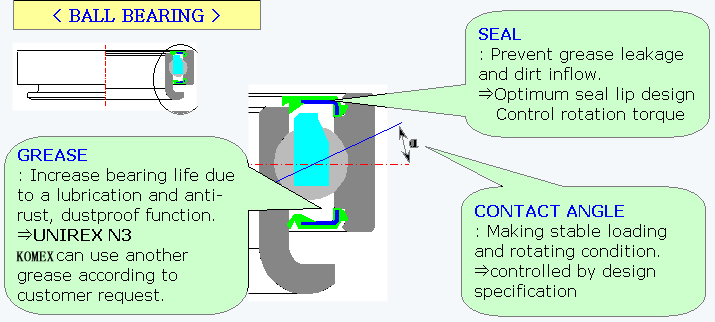

Clutch Release Bearing always rotates same RPM as
crank shaft and during gear
shifting, axial load is applied to release bearing.

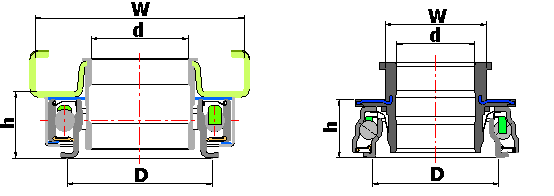

Above 4 items are install basic dimensions, KOMEX
are controlling these dimensions
continuously through original sample tear down.

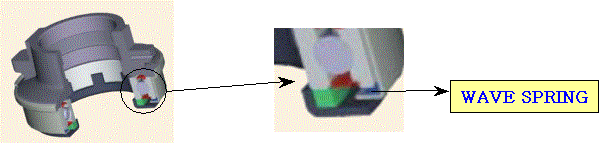

KOMEX is using self centering system for NVH reduction
and long bearing life.
Self centering force and distance are controlled
by original specification.
¡¡
For the detailed
information about AUTO application and OEM part No, please
contact our sales dept. for more message
Clutch Release Bearing
