Products

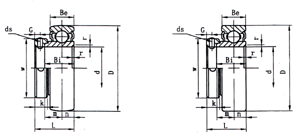

Bearing Units
Bearing No.
Boundary Dimensions (in) or (mm)
d
Be
D
Bi
r
n
m
L
W
K
G
ds
(in)
(mm)
SA201-8 CSA201-8 1/2 0.4724 1.5748 0.752 0.032 0.2362 0.5157 1.125 1.125 0.5315 0.1969 1/4-28
SA202-9 CSA202-9 9/16
SA202-10 CSA202-10 5/8
SA203-11 CSA203-11 11/16
SA201 CSA201 12 12 40 19.1 0.8 6 13.1 28.6 28.6 13.5 5 M6x0.75
SA202 CSA202 15
SA203 CSA203 17
SA204-12 CSA204-12 3/4 0.5512 1.8504 0.8465 0.059 0.2756 0.5709 1.2205 1.311 0.5315 0.1969 1/4-28
SA204 CSA204 20 14 47 21.5 1.5 7 14.5 31 33.3 13.5 5 M6x0.75
SA205-14 CSA205-14 7/8 0.5906 2.0472 0.8465 0.059 0.2953 0.5572 1.2205 1.5 0.5315 0.1969 1/4-28
SA205-15 CSA205-15 15/16
SA205-16 CSA205-16 1
SA205 CSA205 25 15 52 21.5 21.5 7.5 14 31 38.1 13.5 5 M6x0.75
SA206-17 CSA206-17 1 - 1/16 0.6299 2.4409 0.937 0.059 0.315 0.622 1.4055 1.752 0.626 0.2362 5/16-24
SA206-18 CSA206-18 1 -1/8
SA206-19 CSA206-19 1 - 3/16
SA206-20 CSA206-20 1 - 1/4
SA206 CSA206 30 16 62 23.8 1.5 8 15.8 35.7 44.5 15.9 6 M8x1
SA207-20 CSA207-20 1 - 1/4 0.6693 2.8346 1 0.0787 0.3346 0.6654 1.5315 2.189 0.689 0.2559 5/16-24
SA207-21 CSA207-21 1- 5/16
SA207-22 CSA207-22 1 - 3/18
SA207-23 CSA207-23 1 - 7/16
SA207 CSA207 35 17 72 25.4 2 8.5 16.9 38.9 55.6 17.5 6.5 M8x1
SA208-24 CSA208-24 1 - 1/2 0.7087 3.1496 1.189 0.0787 0.3543 0.8346 1.7205 2.374 0.7205 0.2559 5/16-24
SA208-25 CSA208-25 1 - 9/16
SA208 CSA208 40 18 80 30.2 2 9 21.2 43.7 60.3 18.3 6.5 M8x1
SA209-26 CSA209-26 1 - 1/8 0.748 3.3465 1.189 0.0787 0.374 0.815 1.7205 2.5 0.7205 0.2559 5/16-24
SA209-27 CSA209-27 1 - 11/16
SA209-28 CSA209-28 1 - 3/4
SA209 CSA209 45 19 85 30.2 2 9.5 20.7 43.7 63.5 18.3 6.5 M8x1
SA210-29 CSA210-29 1-13/16 0.7874 3.5433 1.189 0.0787 0.3937 0.7953 1.7205 2.752 0.7205 0.2559 5/16-24
SA210-30 CSA210-30 1 - 7/8
SA210-31 CSA210-31 1 - 15/16
SA210-32 CSA210-32 2
SA210 CSA210 50 20 90 30.2 2 10 20.2 43.7 69.9 18.3 6.5 M8x1
SA211-32 CSA211-32 2 0.827 3.937 1.2795 0.0984 0.4134 0.8675 1.9063 3 0.815 0.315 3/8-24
SA211-33 CSA211-33 2 - 1/16
SA211-34 CSA211-34 2 - 1/8
SA211-35 CSA211-35 2 - 3/16
SA211 CSA211 55 21 100 32.5 2.5 10.5 22 48.4 76.2 20.7 8 M10x1.25
SA212-36 CSA212-36 2 - 1/4 0.866 4.331 1.4606 0.0984 0.433 1.0276 2.091 3.315 0.878 0.315 3/8-24
SA212-37 CSA212-37 2 - 5/16
SA212-38 CSA212-38 2 - 3/8
SA212-39 CSA212-39 2 - 7/16
SA212 CSA212 60 22 110 37.1 2.5 11 26.1 53.1 84.2 22.3 8 M10x1.25



Bearing No.
Boundary Dimensions (in) or (mm)
Load Ratings (KN)
Mass (kg)
Approx
d
Be
D
Bi
r
n
m
G
ds

Dynamic

(Cr)

Static

(Cor)
(in)
(mm)
D
Bi
SB201-8 CSB201-8 1/2 0.4724 1.5748 0.8661 0.0393 0.2362 0.63 1.1772 10-32UHF 978 489 0.1
SB202-9 CSB202-9 9/16
SB202-10 CSB202-10 5/8 0.09
SB203-11 CSB203-11 11/16
SB201 CSB201 12 12 40 22 1 6 16 4.5 M5x0.8 0.07
SB202 CSB202 15
SB203 CSB203 17
SB204-12 CSB204-12 3/4 0.5512 1.8501 0.984 0.0595 0.2756 0.708 0.1772 1/4-28 1310 678 0.12
SB204 CSB204 20 14 47 25 1.5 7 18 4.5 M6x0.75
SB205-14 CSB205-14 7/8 0.5906 2.0472 1.063 0.0595 0.2953 0.7677 0.1969 1/4-28 1431 804 0.18
SB205-15 CSB205-15 15/16 0.17
SB205-16 CSB205-16 1 0.16
SB205 SB205 25 15 52 27 1.5 7.5 19.5 5 M6x0.75 0.17
SB206-17 CSB206-17 1-1/16 0.6299 2.4409 1.1811 0.059 0.315 0.8661 0.217 1/4-28 1986 1154 0.28
SB206-18 CSB206-18 1-1/8 0.26
SB206-19 CSB206-19 1-3/16 0.25
SB206-20 CSB206-20 1-1/4 0.23
SB206 CSB206 30 16 62 30 1.5 8 22 5.5 M6x0.75 0.25
SB207-20 CSB207-20 1-1/4 0.6693 2.8346 1.2598 0.0787 0.3346 0.9252 0.2362 5/16-24 2619 1561 0.41
SB207-21 CSB207-21 1-5/16 0.39
SB207-22 CSB207-22 1-3/8 0.37
SB207-23 CSB207-23 1-7/16 0.35
SB207 CSB207 35 17 72 32 2 8.5 23.5 6 M8x1 0.37
SB208-24 CSB208-24 1-1/2 0.7087 3.1496 1.3386 0.0787 0.3543 0.9843 0.315 5/16-24 3012 1851 0.48
SB208-25 CSB208-25 1-9/16 0.45
SB208 CSB208 40 18 80 34 2 9 25 8 M8x1 0.45
SB209-26 CSB209-26 1-5/8 0.748 3.3465 1.622 0.0787 0.4016 1.2205 0.315 5/16-24 3232 2110 0.8
SB209-27 CSB209-27 1-11/16
SB209-28 CSB209-28 1-3/4
SB209-29 CSB209-29 1-13/16
SB209 CSB209 45 19 85 41.2 2 10.2 31 8 M8x1
SB210-30 CSB210-30 1-7/8 0.7474 3.5433 1.7126 0.0787 0.4291 1.2835 0.3543 5/16-24 3579 2365 0.87
SB210-31 CSB210-31 1-15/16
SB210 CSB210 50 20 90 43.5 2 10.9 32.6 9 M8x1
SB211-32 CSB211-32 2 0.8268 3.937 1.7835 0.0984 0.4646 1.3189 0.3937 37857 4426 2982 1.1
SB211-33 CSB211-33 2-1/16
SB211-34 CSB211-34 2-1/8
SB211-35 CSB211-35 2-3/16
SB211 CSB211 55 21 100 45.3 2.5 11.8 33.5 10 M10x1.25
SB212-36 CSB212-36 2-1/4 0.8661 4.3307 2.1142 0.0984 0.5866 1.5276 0.3937 3/8-24 4873 3360 1.3
SB212-37 CSB212-37 2-5/16
SB212-38 CSB212-38 2-3/8
SB212-39 CSB212-39 2-7/16
SB212 CSB212 60 22 110 53.7 2.5 14.9 38.8 10 M10x1.25



Bearing No.
Boundary Dimensions (in) or (mm)
Load Ratings (KN)

Mass (kg)

Approx
d
D
Bi
Be
r
n
m
G
ds
T
Dynamic
(Cr)
Static
(Cor)
in
mm
Bi
UC201-8 1/2 1.8504 1.2205 0.6693 0.093 0.5 0.7205 0.1969 1/4-28 0.1456 1310 678 0.2
UC202-10 5/8 0.19
UC203-11 11/16 0.18
UC204-12 3/4 0.16
UC201 12 47 31 17 1 12.7 18.3 5 M6*0.75 3.7 0.21
UC202 15 0.19
UC203 17 0.18
UC204 20 0.16
UC205-14 7/8 2.0472 1.3425 0.669 0.059 0.563 0.7795 0.197 1/4-28 0.1535 1431 804 0.22
UC205-15 15/16 0.2
UC205-16 1 0.19
UC205 25 52 34.1 17 1.5 14.3 19.8 5 M6*0.75 3.9 0.19
UC206-17 1-1/16 2.4409 1.5 0.748 0.059 0.626 0.874 0.197 1/4-28 0.1968 1986 1154 0.36
UC206-18 1-1/8 0.34
UC206-19 1-3/16 0.32
UC206-20 1-1/4 0.31
UC206 30 62 38.1 19 1.5 15.9 22.2 5 M6*0.75 5 0.31
UC207-20 1-1/4 2.8346 1.689 0.787 0.079 0.689 1 0.236 5/16-24 0.2244 2619 1561 0.52
UC207-21 1-5/16 0.5
UC207-22 1-3/8 0.48
UC207-23 1-7/16 0.46
UC207 35 72 42.9 20 2 17.5 25.4 6 M8*1 5.7 0.46
UC208-24 1-1/2 3.1496 1.937 0.827 0.079 0.748 1.189 0.315 5/16-24 0.2244 3012 1851 0.68
UC208-25 1-9/16 0.64
UC208 40 80 49.2 21 2 19 30.2 8 M8*1 6.2 0.63
UC209-26 1-5/8 3.3465 1.937 0.866 0.079 0.748 1.189 0.315 5/16-24 0.2519 3232 2110 0.78
UC209-27 1-11/16 0.74
UC209-28 1-3/4 0.7
UC209-29 1-13/16 0.68
UC209 45 85 49.2 22 2 19 30.2 8 M8*1 6.4 0.89
UC210-30 1-7/8 3.5433 2.0315 0.9449 0.079 0.748 1.2835 0.3937 3/8-24 0.2559 3579 2365 0.85
UC210-31 1-15/16 0.8
UC210 50 90 51.6 24 2 19 32.6 10 M10*1.25 6.5 0.78
UC211-32 2 3.937 2.189 0.9843 0.098 0.874 1.315 0.3937 37857 0.2755 4426 2982 1.22
UC211-33 2-1/16 1.18
UC211-34 2-1/8 1.1
UC211-35 2-3/16 1.05
UC211 55 100 55.6 25 2.5 22.2 33.4 10 M10*1.25 7 1.07
UC212-36 2-1/4 4.3307 2.563 1.063 0.098 1 1.563 0.394 3/8-24 0.2992 4873 3360 1.65
UC212-37 2-5/16 1.55
UC212-38 2-3/8 1.49
UC212-39 2-7/16 1.42
UC212 60 110 65.1 27 2.5 25.4 39.7 10 M10*1.25 7.6 1.52
UC213-40 2-1/2 4.7244 2.563 1.1024 0.098 1 1.563 0.394 3/8-24 0.3503 5838 4082 1.88
UC213-41 2-9/16 1.8
UC213 65 120 65.1 28 2.5 25.4 39.7 10 M10*1.25 8.9 1.8
UC214-42 2-5/8 4.9213 2.937 1.1811 0.098 1.189 1.748 0.472 7/16-20 0.3503 6207 4595 2.1
UC214-43 2-11/16 2.08
UC214-44 2-3/4 2.07
UC214 70 125 74.6 30 2.5 30.2 44.4 12 M12*1.5 8.9 2.06
UC215-45 2-13/16 5.1181 3.063 1.2598 0.098 1.311 1.752 0.472 7/16-20 0.3503 6746 5051 2.41
UC215-46 2-7/8 2.31
UC215-47 2-15/16 2.21
UC215-48 3 2.11
UC215 75 130 77.8 32 2.5 33.3 44.5 12 M12*1.5 8.9 2.19
UC216-50 3-1/8 5.5118 3.252 1.2992 0.118 1.311 1.941 0.5512 7/16-20 0.3779 7300 5690 2.9
UC216 80 140 82.6 33 3 33.3 49.3 14 M12*1.5 9.6 2.82
UC217-52 3-1/4 5.9055 3.374 1.378 0.118 1.3425 2.0315 0.5512 7/16-20 0.3779 8490 6900 3.56
UC217 85 150 85.7 35 3 34.1 51.6 14 M12*1.5 10 3.46
UC218-56 3-1/2 6.2992 3.7795 1.4567 0.118 1.563 2.2165 0.5905 1/2-20 0.433 9790 8200 4.62
UC218 90 160 96 37 3 39.7 56.3 15 M12*1.5 11 4.53



Bearing No.
Boundary Dimensions (in) or (mm)
Load Ratings (KN)

Mass (kg)

Approx
d
D
Bi
Be
r
n
m
G
ds
T
Dynamic
(Cr)
Static
(Cor)
in
mm
Bi
UC201-8 1/2 1.8504 1.2205 0.6693 0.093 0.5 0.7205 0.1969 1/4-28 0.1456 1310 678 0.2
UC202-10 5/8 0.19
UC203-11 11/16 0.18
UC204-12 3/4 0.16
UC201 12 47 31 17 1 12.7 18.3 5 M6*0.75 3.7 0.21
UC202 15 0.19
UC203 17 0.18
UC204 20 0.16
UC205-14 7/8 2.0472 1.3425 0.669 0.059 0.563 0.7795 0.197 1/4-28 0.1535 1431 804 0.22
UC205-15 15/16 0.2
UC205-16 1 0.19
UC205 25 52 34.1 17 1.5 14.3 19.8 5 M6*0.75 3.9 0.19
UC206-17 1-1/16 2.4409 1.5 0.748 0.059 0.626 0.874 0.197 1/4-28 0.1968 1986 1154 0.36
UC206-18 1-1/8 0.34
UC206-19 1-3/16 0.32
UC206-20 1-1/4 0.31
UC206 30 62 38.1 19 1.5 15.9 22.2 5 M6*0.75 5 0.31
UC207-20 1-1/4 2.8346 1.689 0.787 0.079 0.689 1 0.236 5/16-24 0.2244 2619 1561 0.52
UC207-21 1-5/16 0.5
UC207-22 1-3/8 0.48
UC207-23 1-7/16 0.46
UC207 35 72 42.9 20 2 17.5 25.4 6 M8*1 5.7 0.46
UC208-24 1-1/2 3.1496 1.937 0.827 0.079 0.748 1.189 0.315 5/16-24 0.2244 3012 1851 0.68
UC208-25 1-9/16 0.64
UC208 40 80 49.2 21 2 19 30.2 8 M8*1 6.2 0.63
UC209-26 1-5/8 3.3465 1.937 0.866 0.079 0.748 1.189 0.315 5/16-24 0.2519 3232 2110 0.78
UC209-27 1-11/16 0.74
UC209-28 1-3/4 0.7
UC209-29 1-13/16 0.68
UC209 45 85 49.2 22 2 19 30.2 8 M8*1 6.4 0.89
UC210-30 1-7/8 3.5433 2.0315 0.9449 0.079 0.748 1.2835 0.3937 3/8-24 0.2559 3579 2365 0.85
UC210-31 1-15/16 0.8
UC210 50 90 51.6 24 2 19 32.6 10 M10*1.25 6.5 0.78
UC211-32 2 3.937 2.189 0.9843 0.098 0.874 1.315 0.3937 37857 0.2755 4426 2982 1.22
UC211-33 2-1/16 1.18
UC211-34 2-1/8 1.1
UC211-35 2-3/16 1.05
UC211 55 100 55.6 25 2.5 22.2 33.4 10 M10*1.25 7 1.07
UC212-36 2-1/4 4.3307 2.563 1.063 0.098 1 1.563 0.394 3/8-24 0.2992 4873 3360 1.65
UC212-37 2-5/16 1.55
UC212-38 2-3/8 1.49
UC212-39 2-7/16 1.42
UC212 60 110 65.1 27 2.5 25.4 39.7 10 M10*1.25 7.6 1.52
UC213-40 2-1/2 4.7244 2.563 1.1024 0.098 1 1.563 0.394 3/8-24 0.3503 5838 4082 1.88
UC213-41 2-9/16 1.8
UC213 65 120 65.1 28 2.5 25.4 39.7 10 M10*1.25 8.9 1.8
UC214-42 2-5/8 4.9213 2.937 1.1811 0.098 1.189 1.748 0.472 7/16-20 0.3503 6207 4595 2.1
UC214-43 2-11/16 2.08
UC214-44 2-3/4 2.07
UC214 70 125 74.6 30 2.5 30.2 44.4 12 M12*1.5 8.9 2.06
UC215-45 2-13/16 5.1181 3.063 1.2598 0.098 1.311 1.752 0.472 7/16-20 0.3503 6746 5051 2.41
UC215-46 2-7/8 2.31
UC215-47 2-15/16 2.21
UC215-48 3 2.11
UC215 75 130 77.8 32 2.5 33.3 44.5 12 M12*1.5 8.9 2.19
UC216-50 3-1/8 5.5118 3.252 1.2992 0.118 1.311 1.941 0.5512 7/16-20 0.3779 7300 5690 2.9
UC216 80 140 82.6 33 3 33.3 49.3 14 M12*1.5 9.6 2.82
UC217-52 3-1/4 5.9055 3.374 1.378 0.118 1.3425 2.0315 0.5512 7/16-20 0.3779 8490 6900 3.56
UC217 85 150 85.7 35 3 34.1 51.6 14 M12*1.5 10 3.46
UC218-56 3-1/2 6.2992 3.7795 1.4567 0.118 1.563 2.2165 0.5905 1/2-20 0.433 9790 8200 4.62
UC218 90 160 96 37 3 39.7 56.3 15 M12*1.5 11 4.53



Bearing No.
Boundary Dimensions (in) or (mm)
Load Ratings (KN)
Mass (kg)
Approx
d
D
Bi
Be
r
n
m
G
ds
T

Dynamic

(Cr)
Static

(Cor)
in
mm
Bi
UC305-14 7/8 2.4409 1.4961 0.8125 0.0789 0.5906 0.9055 0.2362 1/4-28 0.24 1760 1160 0.39
UC305-15 15/16 0.37
UC305-16 1 0.35
UC305 25 62 38 21 2 15 23 6 M6x0.75 6.1 0.35
UC306-18 1-1/8 2.8346 1.6929 0.9055 0.0789 0.6693 1.0236 0.2362 1/4-28 0.264 2119 1445 0.6
UC306-19 1-3/16 0.54
UC306 30 72 43 23 2 17 26 6 M6x0.75 6.7 0.56
UC307-20 1-1/4 3.1496 1.8897 0.9842 0.098 0.748 1.1417 0.315 5/16-24 0.29 2620 1830 0.81
UC307-21 1-5/16 0.79
UC307-22 1-3/8 0.75
UC307 35 80 48 25 2.5 19 29 8 M8x1 7.4 0.75
UC308-24 1-1/2 3.5433 2.0472 1.063 0.098 0.748 1.2992 0.3937 3/8-24 0.323 3200 2280 1.07
UC308-25 1-9/16 1
UC308 40 90 52 27 2.5 19 33 10 M10x1.25 8.2 1
UC309-26 1-5/8 3.937 2.2441 1.1811 0.098 0.8661 1.378 0.3937 3/8-24 0.354 4150 3060 1.39
UC309-27 1-11/16 1.33
UC309-28 1-3/4 1.28
UC309 45 100 57 30 2.5 22 35 10 M10x1.25 9 1.26
UC310-30 1-7/8 4.3307 2.4015 1.2598 0.118 0.8661 1.5354 0.4724 7/16-20 0.394 4850 3640 1.75
UC310-31 1-15/16 1.67
UC310 50 110 61 32 3 22 39 12 M12x1.5 10 1.65
UC311-32 2 4.7244 2.5984 1.3386 0.118 0.9842 1.6142 0.4724 7/16-20 0.421 5620 4280 2.3
UC311-34 2-1/8 2.2
UC311-35 2-3/16 2
UC311 55 120 66 34 3 25 41 12 M12x1.5 10.7 2.1
UC312-36 2-1/4 5.1181 2.7953 1.4173 0.138 1.0236 1.7717 0.4724 7/16-20 0.433 6420 4960 2.8
UC312-38 2-3/8 2.6
UC312-39 2-7/16 2.6
UC312 60 130 71 36 3.5 26 45 12 M12x1.5 11.5 2.5
UC313-40 2-1/2 5.5118 2.9528 1.4961 0.138 1.1811 1.7717 0.4724 7/16-20 0.48 7370 5780 3.46
UC313 65 140 75 38 3.5 30 45 12 M12x1.5 12.2 3.32
UC314-44 2-3/4 5.9055 3.0709 1.5748 0.138 1.2992 1.7717 0.4724 7/16-20 0.512 8170 6480 3.9
UC314 70 150 78 40 3.5 33 45 12 M12x1.5 13 3.9
UC315-48 3 6.2992 3.2283 1.6536 0.138 1.2598 1.9685 0.5512 1/2-20 0.543 8900 7310 4.33
UC315 75 160 82 42 3.5 32 50 14 M14x1.5 13.8 4.18
UC316-50 3-1/8 6.6929 3.3858 1.7323 0.138 0.3386 2.0472 0.5512 1/2-20 0.571 9650 8330 5.25
UC316 80 170 86 44 3.5 34 52 14 M14x1.5 14.5
UC317-52 3-1/4 7.0866 3.7795 1.811 0.157 1.5748 2.2047 0.6299 5/8-18 0.591 10410 9130 7
UC317 85 180 96 46 4 40 56 16 M16x1.5 15 6.7
UC318-56 3-1/2 7.4803 3.7795 1.8897 0.157 1.5748 2.2047 0.6299 5/8-18 0.626 11300 10300 7.65
UC318 90 190 96 48 4 40 56 16 M16x1.5 15.9 7.6
UC319-60 3-3/4 7.874 4.0551 1.9685 0.157 1.6142 2.4409 0.6299 5/8-18 0.657 12300 11600 8.75
UC319 95 200 103 50 4 41 62 16 M16x1.5 16.7 8.75
UC320-64 4 8.4646 4.2519 2.126 0.157 1.6535 2.5984 0.7087 3/4-16 0.789 14300 12800 10.03
UC320 100 215 108 54 4 42 66 18 M18x1.5 18 10.28




Contact Information
China Head Offfice:
RM704 NORTH BLDG, SHIJI LONGTENG MANSION,269 ZHONGXING ROAD,NINGBO,China.
Tel: 086-574-87770611, 87770622
Fax: 086-574-87770600, 87770633
EMAIL: sales@kicbearing.com
http://www.kicbearing.com

Komex Industries Co.,Ltd. Designed & Supported By China Manufacturer
