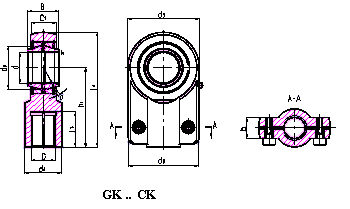

Bearing No.	Dimensions (mm)														Load Ratings kN		Weight ¡Ökg
Bearing No.	d	B	dK	C1 max	d2 max	G 6H	h1	l3 min	l4 max	d4 max	d6 max	b	rs min	¦Á¡ã ¡Ö	Dynamic	Static	Weight ¡Ökg
GK12CK	12	12	18	10.5	32	M12?.25	38	17	54	16	32	12	0.3	4	10	15	0.11
GK16CK	16	16	23	13	40	M14?.5	44	19	64	21	40	12	0.3	4	17	24	0.21
GK20CK	20	20	29	17	47	M16?.5	52	23	75.5	25	47	14	0.3	4	30	36	0.40
GK25CK	25	25	35.5	21	58	M20?.5	65	29	94	30	54	17	0.6	4	48	57	0.66
GK32CK	32	32	43	27	70	M27?	80	37	115	38	66	22	0.6	4	65	81	1.2
GK40CK	40	40	53	32	89	M33?	97	46	141.5	47	80	26	0.6	4	99	156	2.1
GK50CK	50	50	66	40	108	M42?	120	57	174	58	96	32	0.6	4	156	250	4.5
GK63CK	63	63	83	52	132	M48?	140	64	206	70	114	38	1	4	253	343	7.6
GK80CK	80	80	105	66	168	M64?	180	86	264	90	148	48	1	4	400	560	14.0
GK100CK	100	100	130	84	210	M80?	210	96	315	110	178	62	1	4	607	960	28.0
