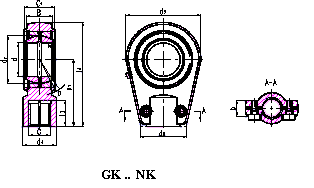

Bearing No.	Dimensions (mm)														Load Ratings kN		Weight ¡Ökg
Bearing No.	d	B	dK	C1 max	d2 max	G 6H	h1	l3 min	l4 max	d4 max	d6 max	b	rs min	¦Á¡ã ¡Ö	Dynamic	Static	Weight ¡Ökg
GK20NK	20	16	29	19	56	M16?.5	50	17	78	25	36	17	0.3	9	30	42	0.37
GK25NK	25	20	35.5	23	56	M16?.5	50	17	78	25	36	21	0.6	7	48	52	0.43
GK30NK	30	22	40.7	28	64	M22?.5	60	23	92	32	40	26	0.6	6	62	72	0.70
GK35NK	35	25	47	30	78	M28?.5	70	29	109	40	50	28	0.6	6	79	104	1.1
GK40NK	40	28	53	35	94	M35?.5	85	36	132	49	60	33	0.6	7	99	173	2.1
GK50NK	50	35	66	40	116	M45?.5	105	46	163	61	72	37	0.6	6	156	265	3.3
GK60NK	60	44	80	50	130	M58?.5	130	59	195	75	90	46	1	6	245	320	5.5
GK70NK	70	49	92	55	154	M65?.5	150	66	227	86	100	51	1	6	313	440	8.6
GK80NK	80	55	105	60	176	M80?	170	81	258	102	125	55	1	6	400	570	12.0
GK100NK	100	70	130	70	230	M110?	235	111	350	138	166	65	1	7	607	965	28.0
