 Water Pump Bearing
04/01
　　01　02　03　04?/font>?/font>　


          Water pump bearing is the simplified dualsupporting bearing and is characterized by a high carrying capacity, good rotation precision, simple structure and good sealing.This integral shaft type bearings are applied to automotive water-pumps whose function is to circulate coolant for cooling the engines.

BALL-BALL TYPE:
5/8"(.6267-.6275)SHAFT×1.1811"(30mm)O.D
53/4"(.7465)shaft×1.5000"(38.1mm)×O.D

BALL-ROLLER TYPE:
5/8"(.6267-.6275)SHAFT×1.1811"(30mm)O.D (1.531")
5/8"(.6267-.6275)SHAFT×1.1811"(30mm)O.D (2.125")


5/8"(.6267-.6275)SHAFT×1.1811"(30mm)O.D

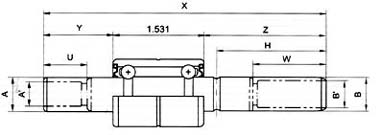

Bearing No.
w
OS. Shaft O.D
X
Y
Z
H
U
W
 Weight Water Pump Bearings Conversion List
Standard
Step
Standard
Step
A
B
A'
B'
A
B
A'
B'
(kg)
FAG
NSK
WIB1630160 0.6267 0.6267 0.6287 0.6287 6.281 3 1.75 1.5 0.327 W2628-1 885094S
WIB1630106 0.6267 0.6267 0.6287 0.6287 4.172 0.813 1.828 1.642 0.243 W2417-2 885097
WIB1630124 0.6267 0.6267 0.6287 0.6287 4.869 1.25 2.088 1.75 0.27 W2486-2 885100B
WIB1630132A 0.6267 0.6267 0.6287 0.6287 5.203 1.984 1.688 1.438 0.284 W2520 885104A
WIB1630121 0.6267 0.6267 0.6287 0.6287 4.75 1.156 2.063 1.813 0.266 W2476 885105
WIB1630106A 0.6267 0.6267 0.6287 0.6287 4.17 0.159 2.48 1.953 0.242 W2417 885106
WIB1630110A 0.6267 0.6267 0.6287 0.6287 4.312 0.578 2.203 0.248 885107C
WIB163098A 0.6267 0.6267 0.499 0.6287 0.6287 0.501 3.844 0.75 1.563 1.438 0.208 W2384S 885110
WIB1630109 0.6267 0.6267 0.6287 0.6287 4.281 1.078 1.672 1.482 0.247 W2428-1 885111D
WIB1630134 0.6267 0.6267 0.6287 0.6287 5.276 1.678 2.067 1.5 0.287 W2527 885113B
WIB1630150 0.6267 0.6267 0.6287 0.6287 5.907 1.382 2.994 0.312 W2590-2 885116C
WIB1630162 0.6267 0.6267 0.6287 0.6287 6.375 2.297 2.547 2.328 0.331 W2637 885117
WIB1630119 0.6267 0.6267 0.6287 0.6287 4.688 1.469 1.688 1.438 0.263 W2468 885118
WIB163084 0.6267 0.6267 0.4724 0.6287 0.6287 0.4744 3.323 0.512 1.28 1.421 1.197 0.188 W2334S 885122
WIB1630119A 0.6267 0.6267 0.6287 0.6287 4.703 1.281 1.891 0.264 W2470 885135S
WIB1630103 0.6267 0.6267 0.6287 0.6287 4.063 0.922 1.61 0.238 W2406-1 88514O
WIB1630128 0.6267 0.6267 0.499 0.6287 0.6287 0.501 5.031 1.016 2.484 2.235 1.5 0.277 W2503 885141
WIB1630143 0.6267 0.6267 0.6287 0.6287 5.625 1.578 2.516 0.301 W2562-1 885144
WIB1630102A 0.6267 0.6267 0.6287 0.6287 4.031 0.875 1.625 0.215 W2404S 885147
WIB1630128A 0.6267 0.6267 0.6287 0.6287 5.031 1.75 1.75 0.277 W2503-6 885151B



Bearing No.
Shaft O.D
OS. Shaft O.D
X
Y
Z
H
U
W
Weight
Water Pump Bearings Conversion List
Standard
Step
Standard
Step
A
B
A'
B'
A
B
A'
B'
(kg)
FAG
NSK
WIB163073 0.6267 0.6267 2.89 0.156 0.156 0.191 W2289 885154
WIB1630113 0.6267 0.6267 0.6287 0.6287 4.453 1.249 1.249 1.423 0.254 W2445 885155
WIB1630113A 0.6267 0.6267 0.6287 0.6287 4.468 1.078 1.078 1.55 0.254 W2446 885156
WIB1630138 0.6267 0.6267 0.6287 0.6287 5.437 2.297 2.297 1.36 0.293 W2543 885158
WIB1630135 0.6267 0.6267 0.6287 0.6287 5.312 1.312 1.305 0.288 W2531-1 885158AA
WIB1630136A 0.6267 0.6267 0.6287 0.6287 5.37 5.37 1.537 1.928 0.29 W2537 885158P
WIB1630105A 0.6267 0.6267 0.6287 0.6287 4.141 4.141 0.938 1.423 0.241 W2414-2 885159
WIB163083 0.6267 0.6267 0.6287 0.6287 3.25 0.156 1.563 0.206 W2325 885165
WIB1630128B 0.6275 0.6275 0.6295 0.6295 5.031 1.219 2.281 2.031 0.277 W3503-5 885166K
WIB1630112 0.6267 0.6267 0.6287 0.6287 4.39 0.937 1.922 1.672 0.251 W2439 885167
WIB1630112A 0.6267 0.6267 0.6287 0.6287 4.4 1.15 1.719 1.53 0.252 W2440-4 885167D
WIB1630122 0.6275 0.6275 0.6295 0.6295 4.813 1.582 1.7 1.507 0.269 W3481-6 885168AD
WIB1630122B 0.6267 0.6267 0.6287 0.6287 4.813 1.125 2.157 1.937 0.268 W2481-1 885168C
WIB1630122C 0.6275 0.6275 0.6295 0.6295 4.813 1.125 2.157 1.937 0.269 W3481-1 885168H
WIB1630129 0.6267 0.6267 0.6287 0.6287 5.078 1.25 2.297 2.109 0.278 W2507 885169
WIB163069 0.6267 0.6267 0.6287 0.6287 2.72 0.16 1.029 0.185 W2272 885198
WIB163061 0.6267 0.6267 0.6287 0.6287 2.4 0.156 0.713 0.172 885198AF
WIB1630122A 0.6267 0.6267 0.6287 0.6287 4.788 1.237 2.02 1.71 0.267 W2478-1 885238
WIB1630124A 0.6267 0.6267 0.6287 0.6287 4.898 1.57 1.797 1.611 0.272 W2489-5 885245
WIB1630141 0.6267 0.6267 0.6287 0.6287 5.551 1.926 2.094 1.735 0.298 W2555 885248
WIB1630110B 0.6267 0.6267 0.6287 0.6287 4.339 0.935 1.872 0.249 W2432 885305
WIB163098 0.6267 0.6267 0.6287 0.6287 3.858 0.67 1.657 0.23 W2385 885307
WIB163088 0.6267 0.6267 0.4724 0.6287 0.6287 0.4744 3.464 0.709 1.693 1.594 0.193 WS2346-1 885319+
WIB1630102 0.6275 0.6275 0.6295 0.6295 3.996 0.689 1.776 0.236 W2401-3 885321
WIB1630124B 0.6267 0.6267 0.6287 0.6287 4.882 1.654 1.697 0.244 W2488S 885326
WIB1630112B 0.6267 0.6267 0.4724 0.6287 0.6287 0.5532 0.4744 4.409 1.181 1.697 0.858 1.594 0.225 W2440-5S 885327
WIB1630101 0.6267 0.6267 0.4724 0.6287 0.6287 0.4744 3.976 0.945 1.5 1.382 0.203 885328
WIB163093 0.6267 0.6267 0.6287 0.6287 3.661 0.728 1.402 0.222 W2366 885330
WIB1630110 0.6267 0.6267 0.6287 0.6287 4.346 0.841 0.974 1.614 0.25 W2434 885332
WIB1630116 0.6267 0.6267 0.6287 0.6287 4.547 0.807 2.209 0.258 885337A
WIB163085 0.6267 0.6267 0.6287 0.6287 3.327 0.679 1.585 1.467 0.188 WS2332-1 885342+



Bearing No.
Shaft O.D
OS. Shaft O.D
X
Y
Z
H
U
W
Weight
Water Pump Bearings Conversion List
Standard
Step
Standard
Step
A
B
A'
B'
A
B
A'
B'
(kg)
FAG
NSK
WIB163099A 0.6267 0.6267 0.4724 0.6287 0.6287 0.4744 3.917 0.65 1.736 1.684 0.203 885351
WIB1630115 0.6267 0.6267 0.4724 0.6287 0.6287 4.528 0.65 2.347 1.594 0.229 885354
WIB1630100 0.6267 0.6267 0.4724 0.6287 0.6287 3.937 0.945 1.461 1.381 0.209 885355
WIB1630104A 0.6267 0.6267 0.4724 0.6287 0.6287 0.4744 4.075 0.77 1.774 1.654 0.21 885356
WIB1630113 0.6267 0.6267 0.6287 0.6287 4.449 1.378 1.54 0.253 885357
WIB1630104B 0.6267 0.6267 0.6287 0.6287 4.075 1.016 1.528 0.239 885358
WIB1630135A 0.6267 0.6267 0.5015 0.6287 0.6287 0.5035 5.326 2 1.795 1.605 1.47 0.289 W2532 885437S
WIB1630106B 0.6267 0.6267 0.6287 0.6287 4.18 0.989 1.66 0.222 W2418S 885439
WIB1630141A 0.6267 0.6267 0.6287 0.6287 5.561 1.53 2.5 2.31 0.298 W2556 885458
WIB1630101A 0.6267 0.6267 0.47
27		 0.4995 0.6287 0.6287 0.4747 0.5015 3.986 1.14 1.315 0.937 1.221 0.201 W2398-1S 885467
WIB163099 0.6267 0.6267 0.4727 0.6287 0.6287 0.4747 3.875 0.885 1.459 1.336 0.208 W2387S 885474
WIB1630122D 0.6267 0.6267 0.4739 0.6287 0.6287 0.4759 4.81 1.334 1.945 1.755 1.023 0.268 W2481 885476
WIB163092 0.6267 0.6267 0.6287 0.6287 3.641 0.989 1.121 0.204 W2364S 885477
WIB1630116A 0.6267 0.6267 0.6295 0.6295 4.557 1.057 1.968 0.258 W2455 885495
WIB1630132 0.6275 0.6275 0.6287 0.6287 5.202 1.582 2.089 1.901 0.284 W3520-2 885521
WIB1630110C 0.6267 0.6267 4.33 1.139 1.66 1.439 0.249 W2433-2 885524S
WIB1630101B 0.6267 0.6267 0.6287 0.6287 3.984 1.078 1.375 1.225 1.654 0.235 W2398 885538
WIB1630139 0.6267 0.6267 0.6287 0.6287 5.485 1.38 2.574 2.214 0.295 W2548-1 885603
WIB1630133 0.6275 0.6275 0.6287 0.6287 5.222 1.172 2.519 2.33 0.284 W3522-1 885611
WIB1630154 0.6275 0.6275 0.6295 0.6295 6.072 1.172 3.369 3.119 1.654 0.319 W3607-1 885613
WIB1630146 0.6267 0.6267 0.6287 0.6287 5.576 2.43 1.795 1.605 0.306 W2575-2 885694S
WIB1630106D 0.6267 0.6267 0.47
24		 0.4724 0.6287 0.6287 0.4747 0.4744 4.075 0.849 1.695 0.768 1.594 0.195 W2407-1S BWF30-6A-A-R
WIB1630106C 0.6267 0.6267 0.4724 4.154 0.925 1.697 1.594 0.212 BWF30-15R
WIB163093C 0.6267 0.6267 0.4724 3.661 0.728 1.402 1.284 0.198 W2366 BWF30-56CR
WIB163093A 0.6267 0.6267 0.4724 3.642 0.65 1.461 1.358 0.196 BWF30-A-RR6
WIB163095 0.6267 0.6267 0.4724 3.724 0.756 1.437 1.319 0.2 BWF30-137R
WIB1630103A 0.6267 0.6267 0.47
24		 0.4724 4.055 0.65 1.874 0.571 1.693 0.203 BWF30-174XR
WIB163093B 0.6267 0.6267 0.4724 3.624 0.65 1.461 1.358 0.185 BWF30-181-A-B
